Exact format
Closed target is 219 x 102 x 27 mm, shown across the page and layout file.
Box branding layout
219 x 102 x 27 mm hinged tray.
This is the production-facing Boda box direction: the physical form, original box design, flat panel placement, foam-insert logic, and the supplier notes needed before artwork is rebuilt on the final dieline.
What this solves
A supplier can see the actual box, not just a mockup.
The reference shows the construction. The layout shows where the Boda identity, lid copy, side-wall copy, insert area, and foam cavities belong before production files are prepared.
Hinged tray logic
Outer cover, hinge spine, inside lid, base tray, side walls, and foam are separated.
External ready
Partner-facing copy stays premium and avoids internal notes, claims, protocols, or dosage copy.

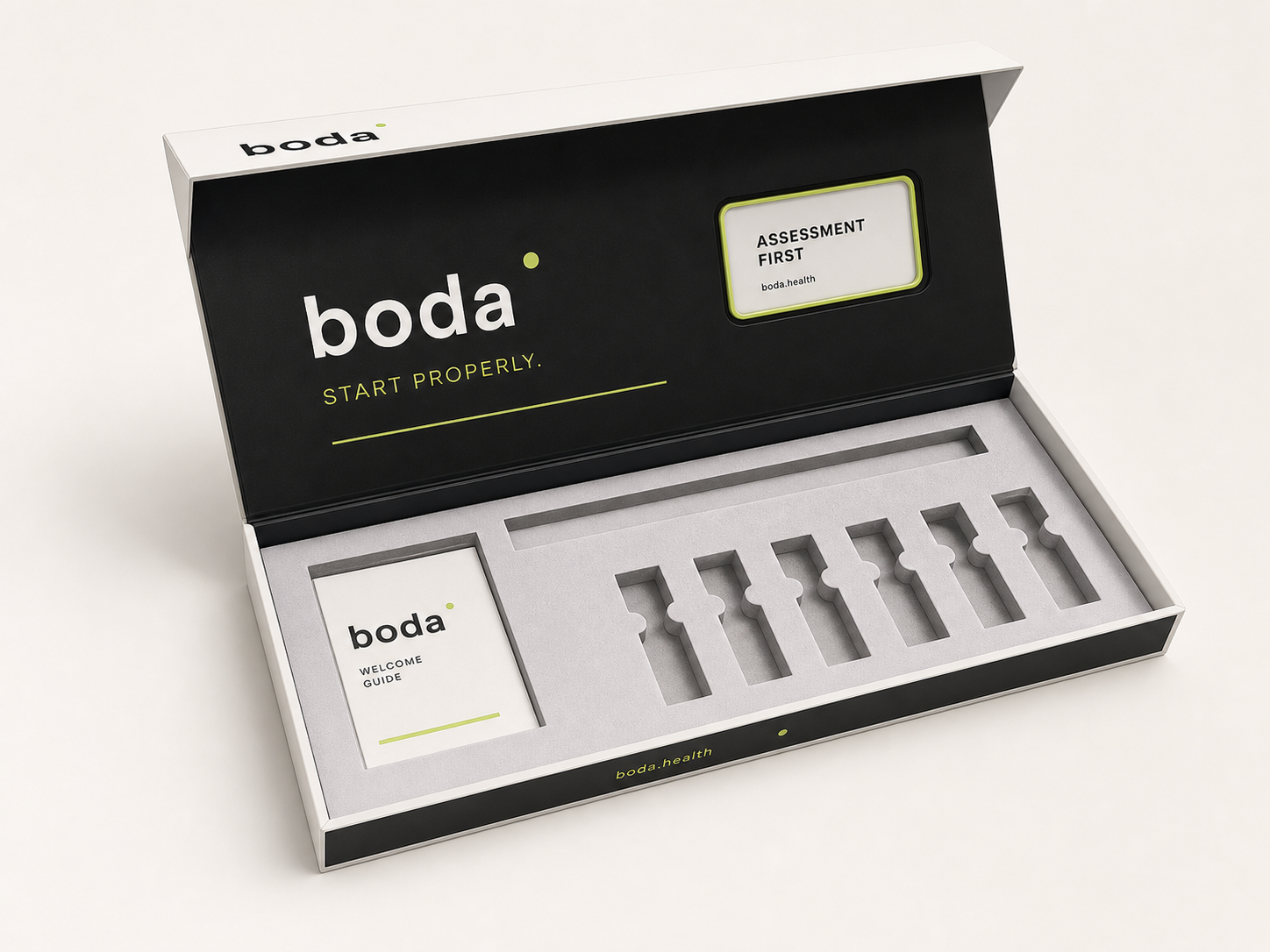

Physical reference
The Boda box design.
This is an original Boda direction for the hinged tray format: branded inside lid, assessment-first window, welcome guide, shallow tray, custom foam, and a restrained black/lime utility edge. The sample box defines construction only; this is the Boda-owned visual direction to brief into supplier artwork.
Panel specification
Welcome box production brief.
The final dieline must come from the chosen supplier, but these are the required dimensions, surfaces, and brand placements for the box itself.
Closed box219 x 102 x 27 mm
Hinged presentation tray with foam insert.
Outer cover219 x 102 mm
Minimal Boda mark and short brand line.
Inside lid219 x 102 mm
Clean welcome message with optional document/window area.
Base tray219 x 102 x 27 mm
Foam insert sits inside tray and controls the product presentation.
Foam insertSupplier confirmed
Target visible area approx. 207 x 90 mm before tolerance.
Side walls219 x 27 mm / 102 x 27 mm
Tiny utility copy only: URL, assessment first, or reorder cue.
Flat layout
Artwork placement guide.
Red dashed line is bleed. Grey dashed line is safe area. Clay dashed line is fold or edge. The supplier should rebuild this on their exact dieline before print.
Downloads
Send these files to the supplier.
Use the original design, layout, and construction references for supplier briefing. Production starts once the supplier returns the confirmed dieline and foam-cut tolerances.
SVG
Box production layout
Flat supplier-facing map for the 219 x 102 x 27 mm hinged tray box, with panel placement, safe area, bleed, and foam logic.
Open filePNG
Original box design
Boda-owned hinged tray concept mockup for the 219 x 102 x 27 mm box format.
Open filePNG

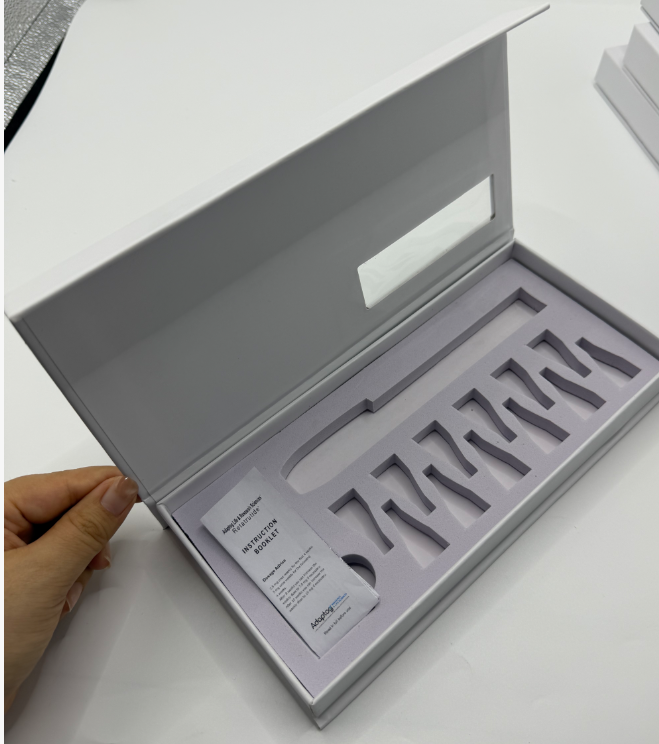

Construction reference
Original physical box reference for the hinged presentation-tray construction and insert direction.
Open file
MP4
Motion reference
Short video reference for how the box opens, presents the foam, and should feel in hand.
Open fileZIP
Packaging asset pack
Current bundled pack artwork, selected cards, and presentation mockups for partner conversations.
Open fileSupplier handoff
Before approving print.
- Use 219 x 102 x 27 mm as the closed-box target.
- Ask the selected box supplier for their final dieline before print.
- Treat the SVG as the placement brief, not the manufacturing dieline.
- Confirm hinge clearance, foam depth, cavity dimensions, and window/aperture placement.
- Do not print dosage, protocol, or medical claims on the box.
- Put changeable instructions on approved insert cards, QR destinations, or licensed-partner paperwork.
